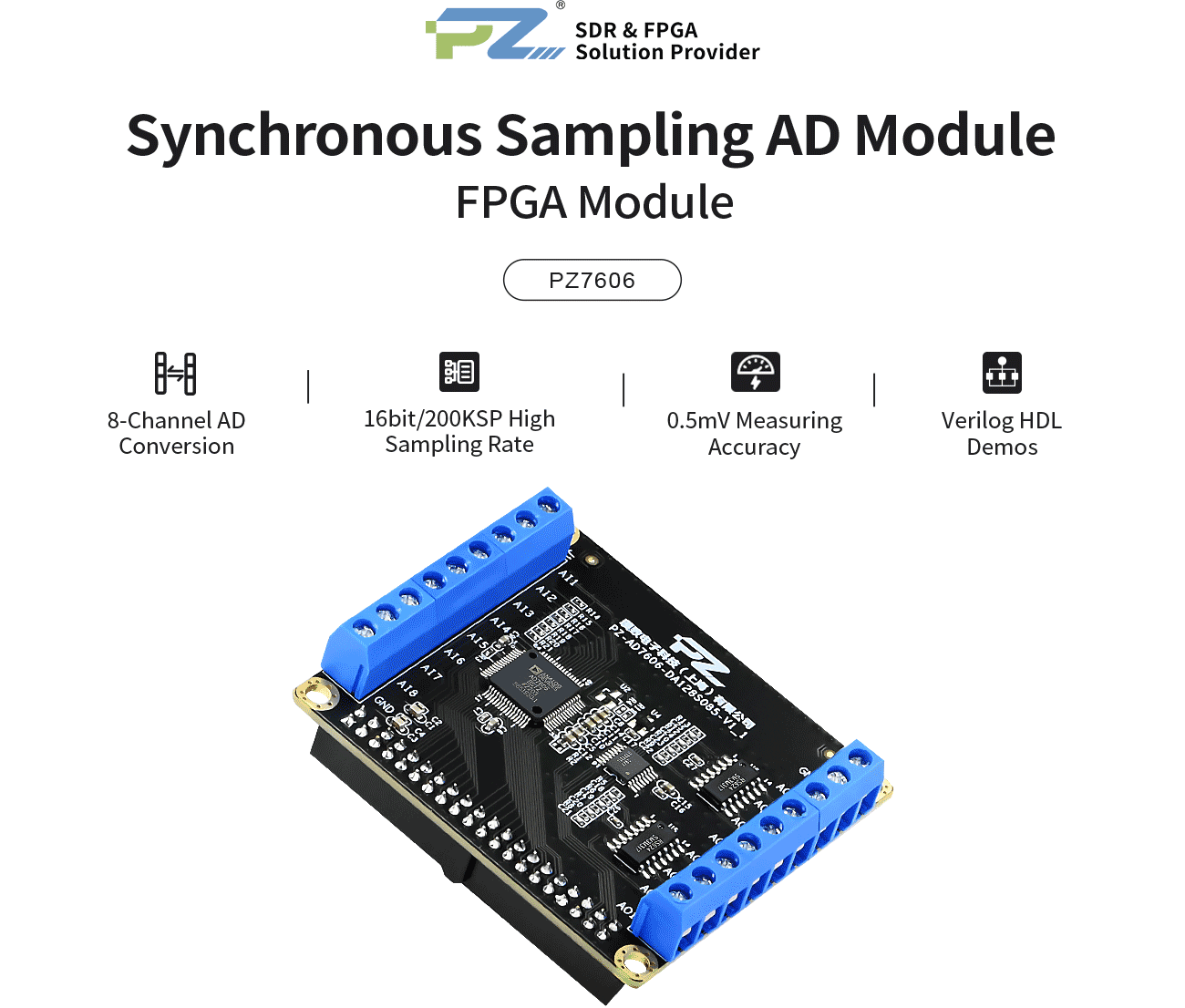

Puzhi Expansion Module Synchronous Sampling AD7606

Home- Product Center

PZ7606

8-Channel AD Conversion, ADC 16bit/200KSPS high sampling rate

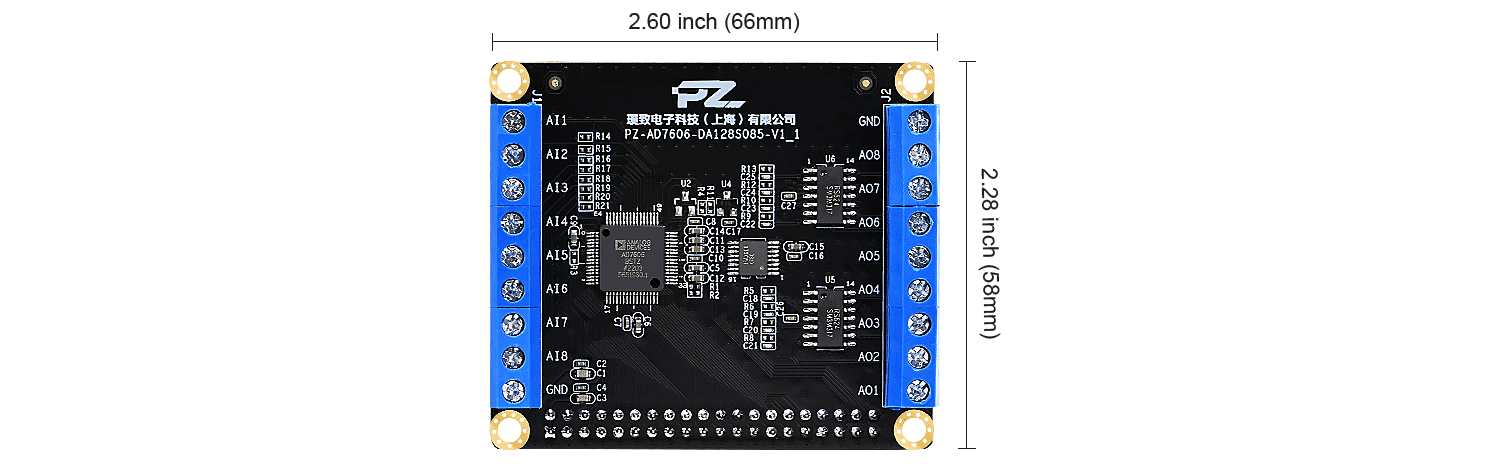

Size 66*58mm, standard 40pin interface
0.5mV Measurement accuracy, voltage range -10~ +10V
Extreme material selection and process standards, industrial grade-40℃~+85℃

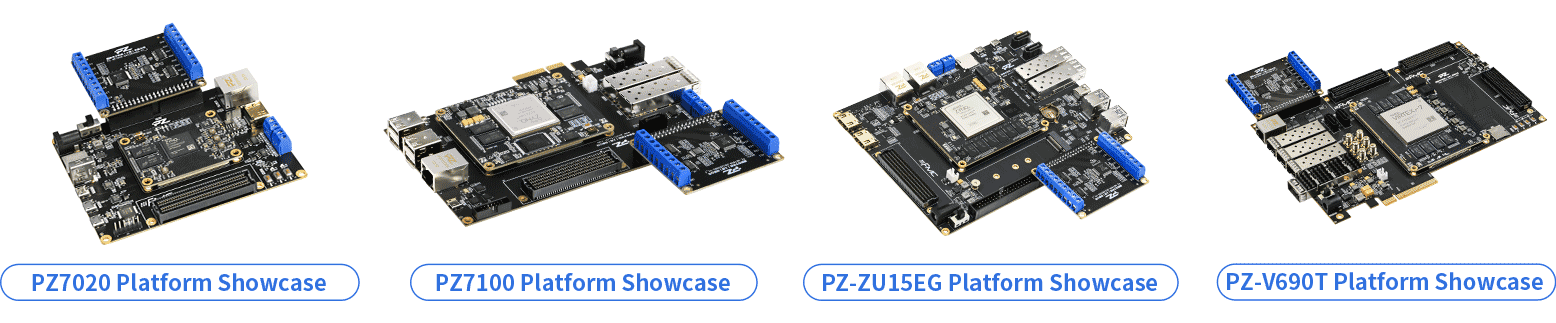

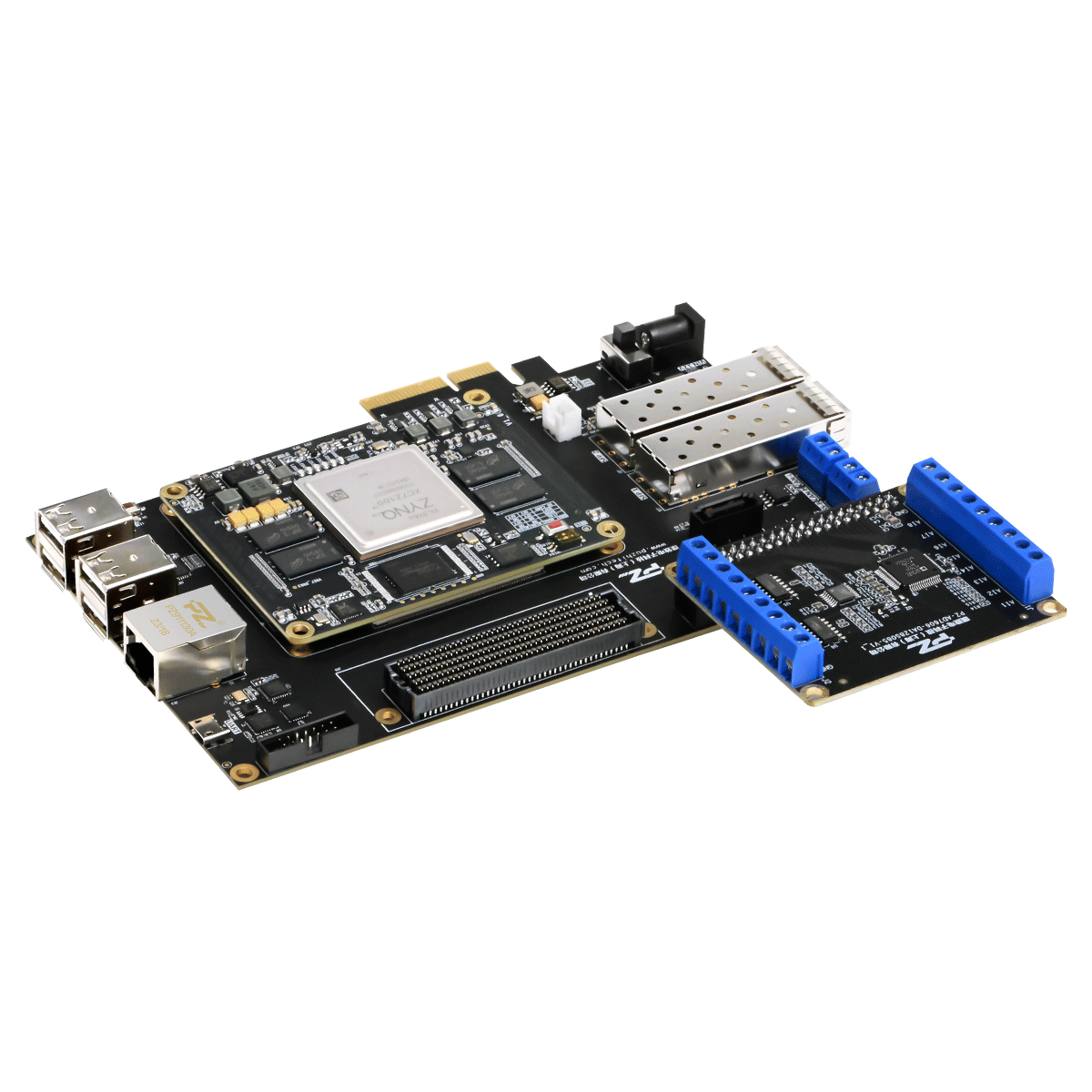

Support full platform expansion, provide multi-platform routines, help product development

Commerical Invoice
- 1.
  Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
- 2.
  Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
- 1.
  The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
- 2.
  Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
- 3.
  Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
- 4.
  The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
- 1.
  DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
- 2.
  Working Time: Monday to Friday, 9am to 6pm CsT.
