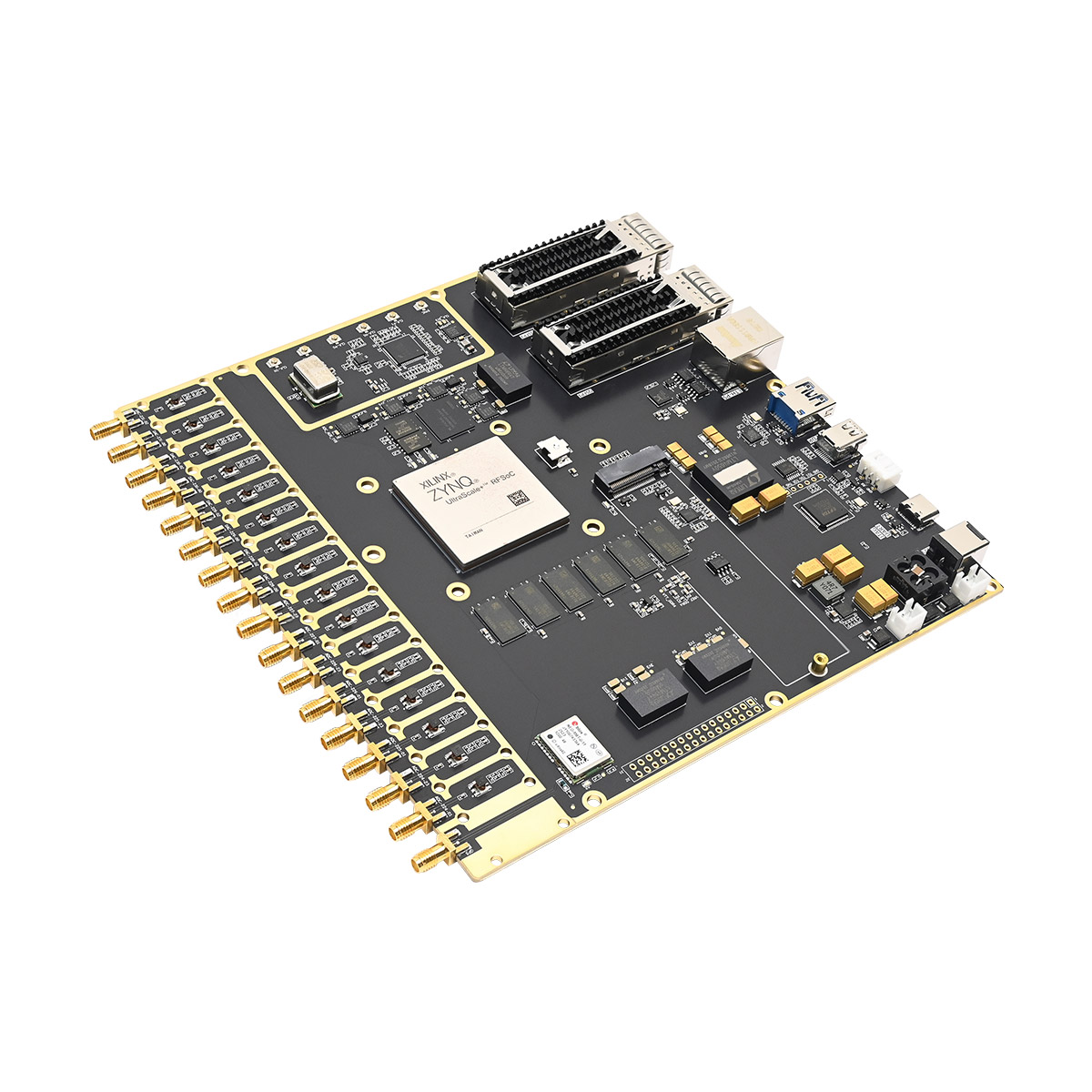

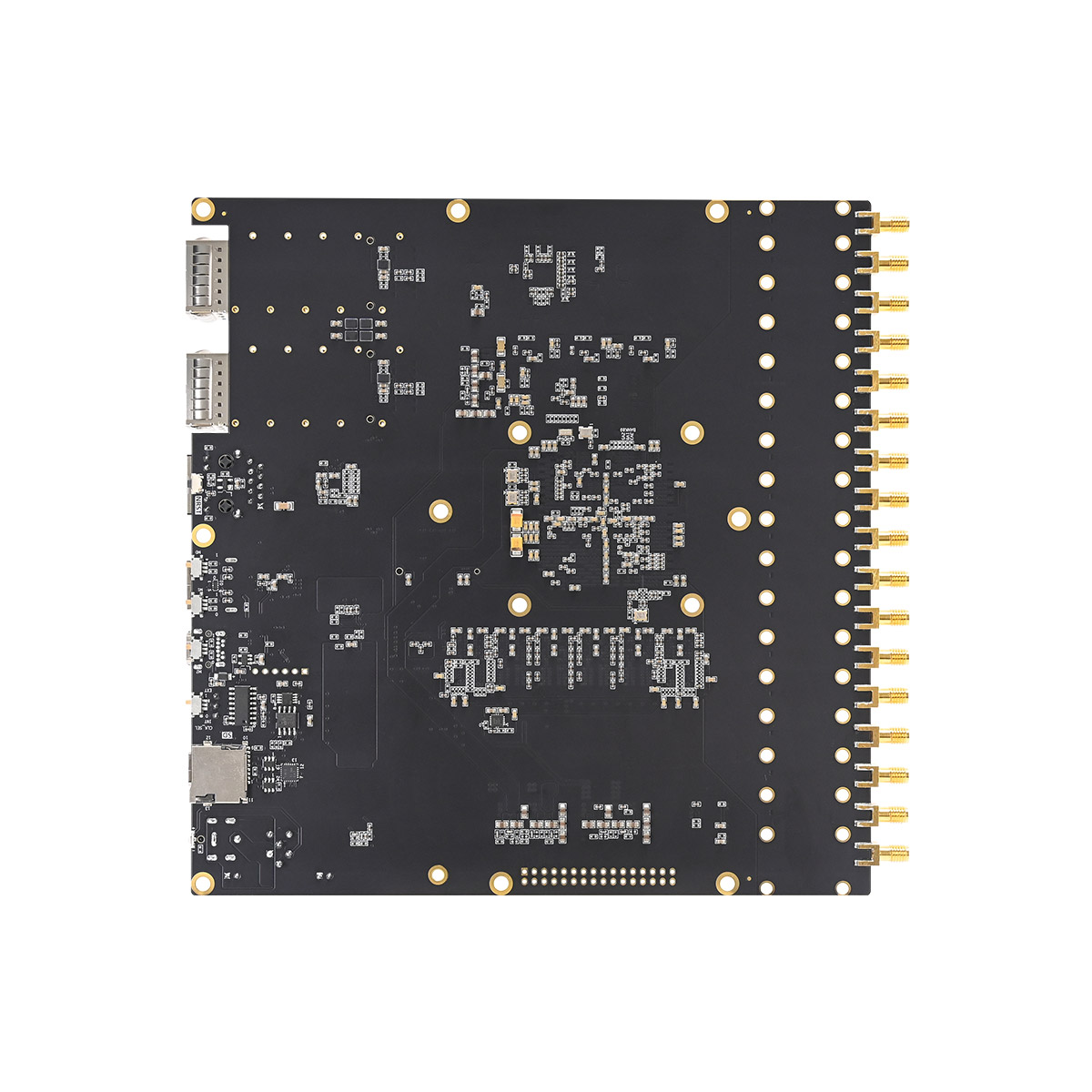

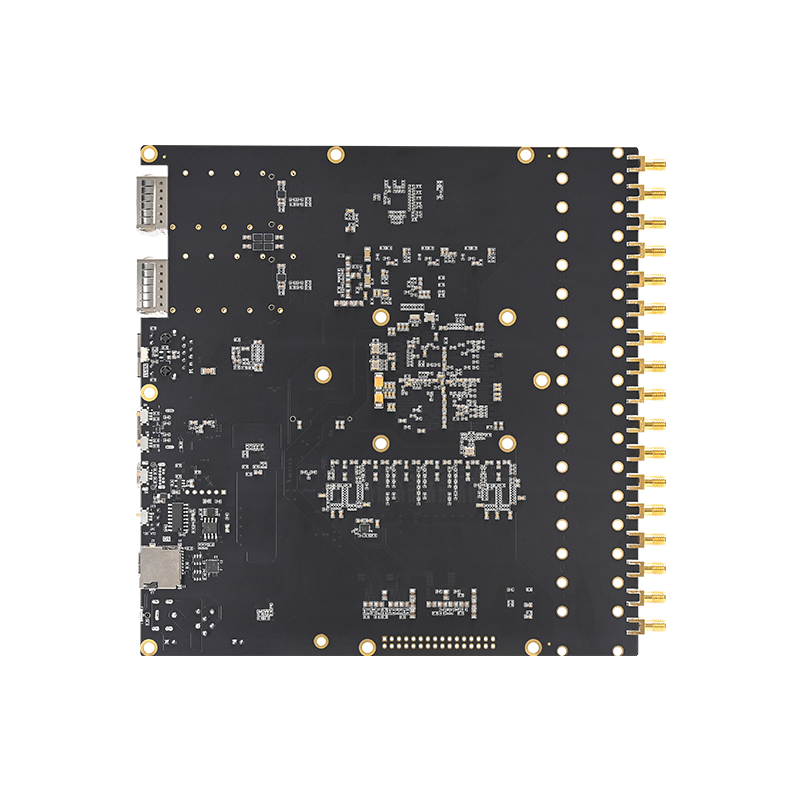

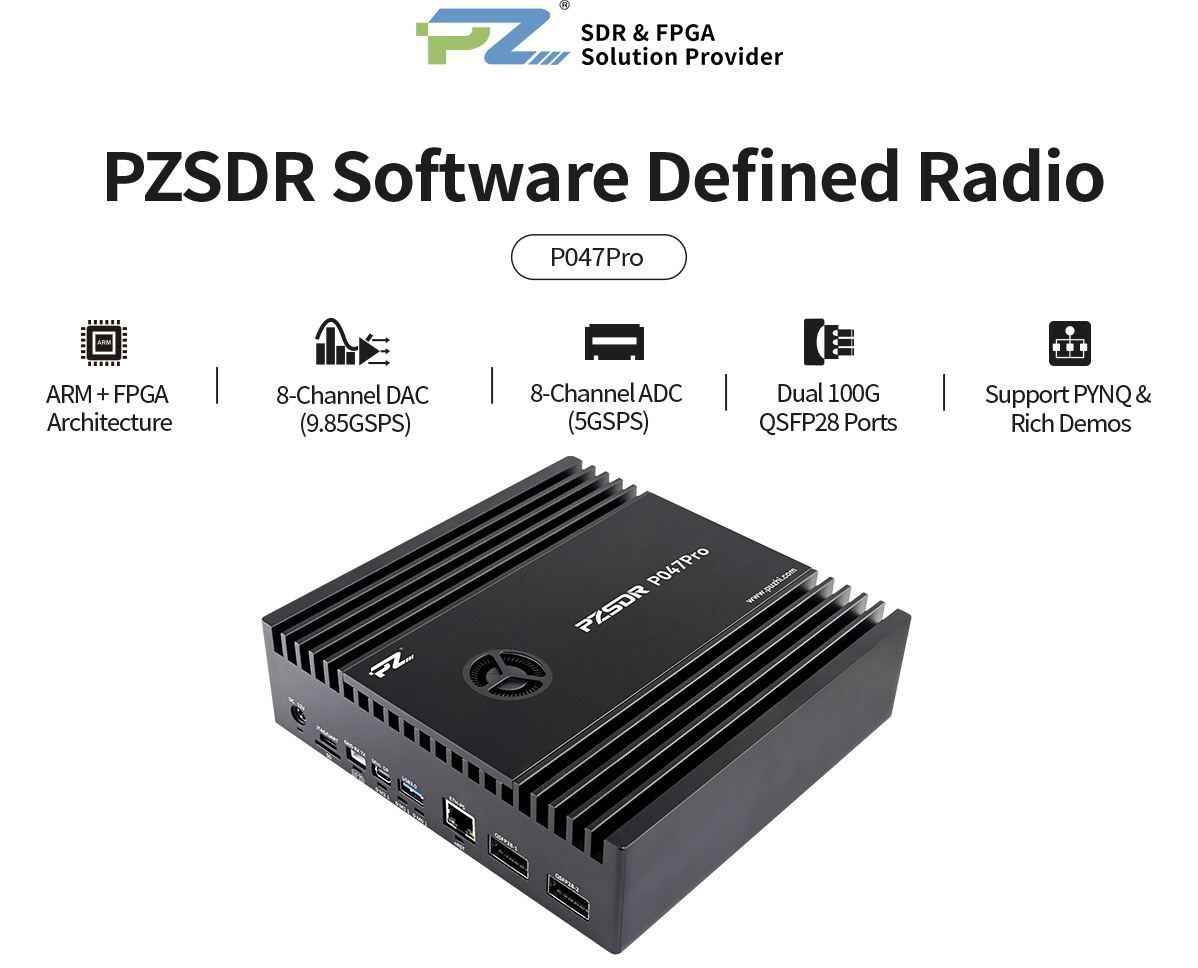

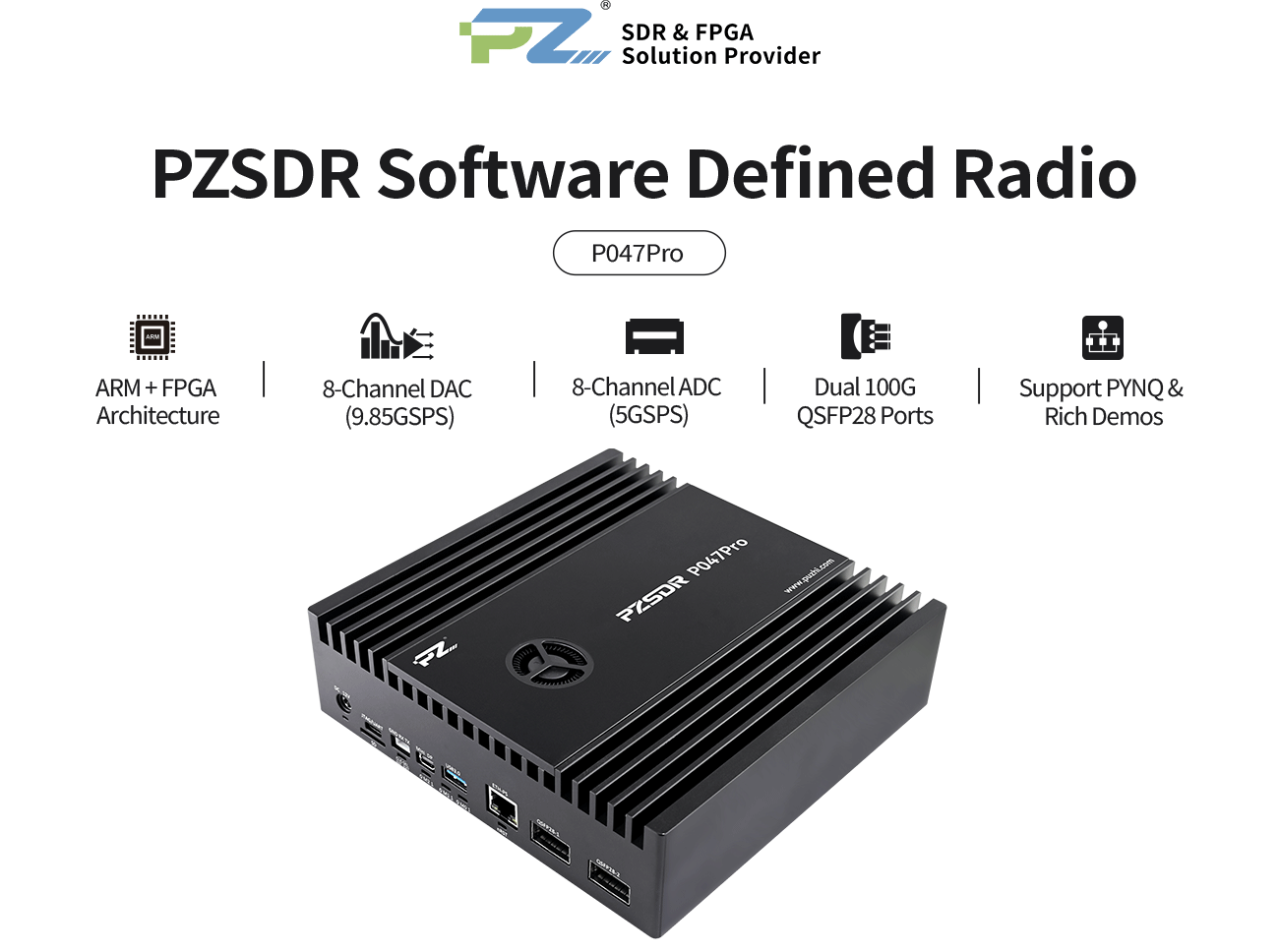

Puzhi FPGA ZYNQ UltraScale+RFSOC XCZU47DR P047Pro Development Board
- ARM+FPGA architecture，4 x Cortex-A53，main frequency 1.333Ghz
- PS Side 8GB、PL Side 4GB DDR4，32GB EMMC，1Gb QSPIFLASH
- 8-channel ADC/ sampling rate 5Gsps，8-channel DAC/ sampling rate 9.85Gsps
- Reserved ports UART、RS232、SSD、Gigabit Ethernet、Mini DP、USB3.0、QSFP28，etc
- Provide RF demos，support PYNQ，rich routines，help product development

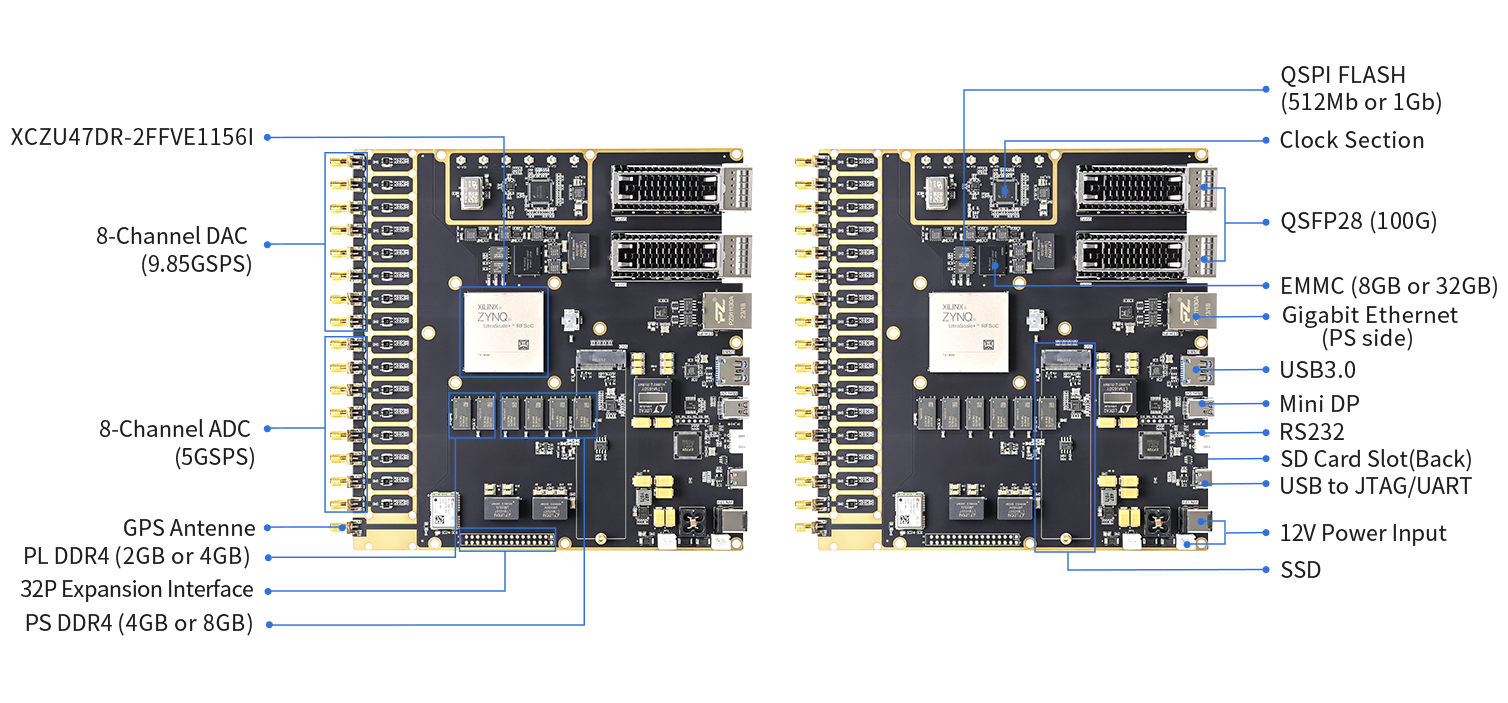

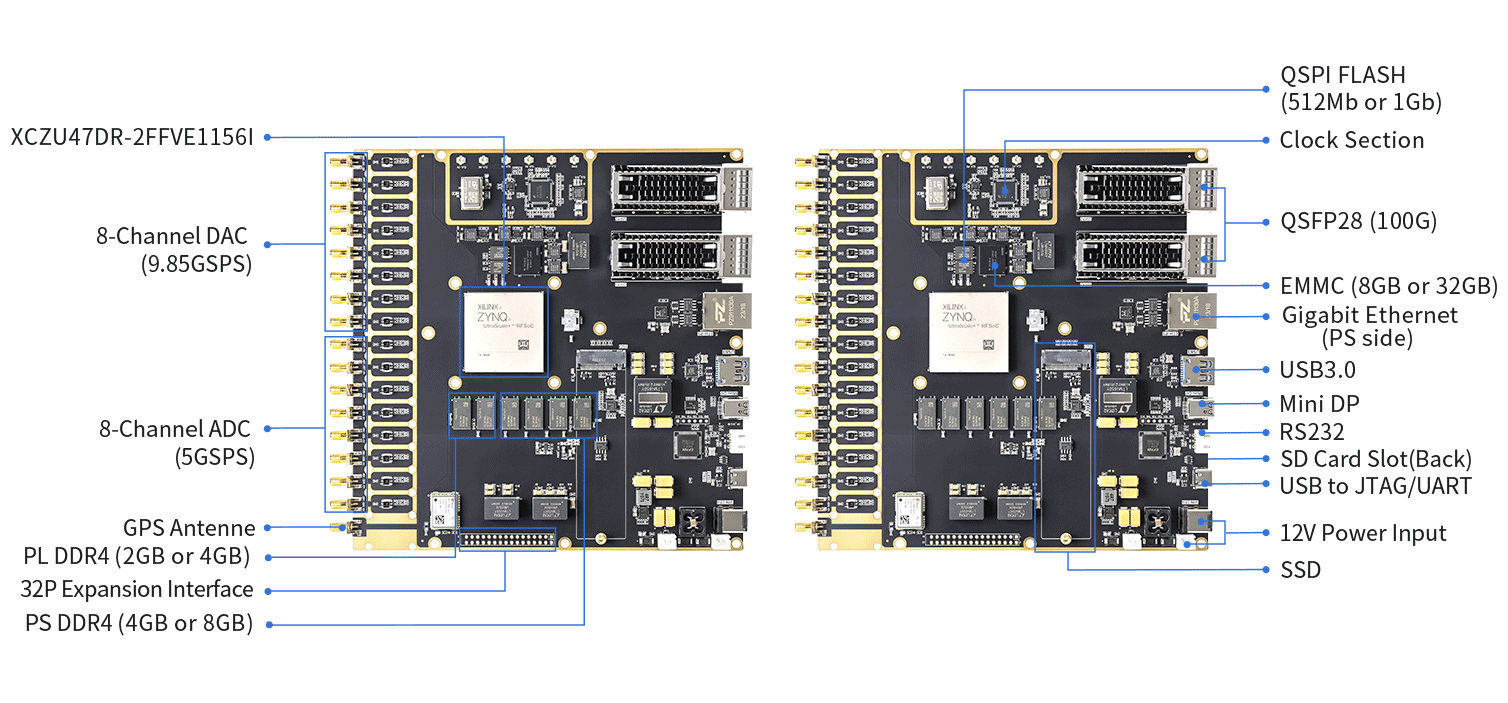

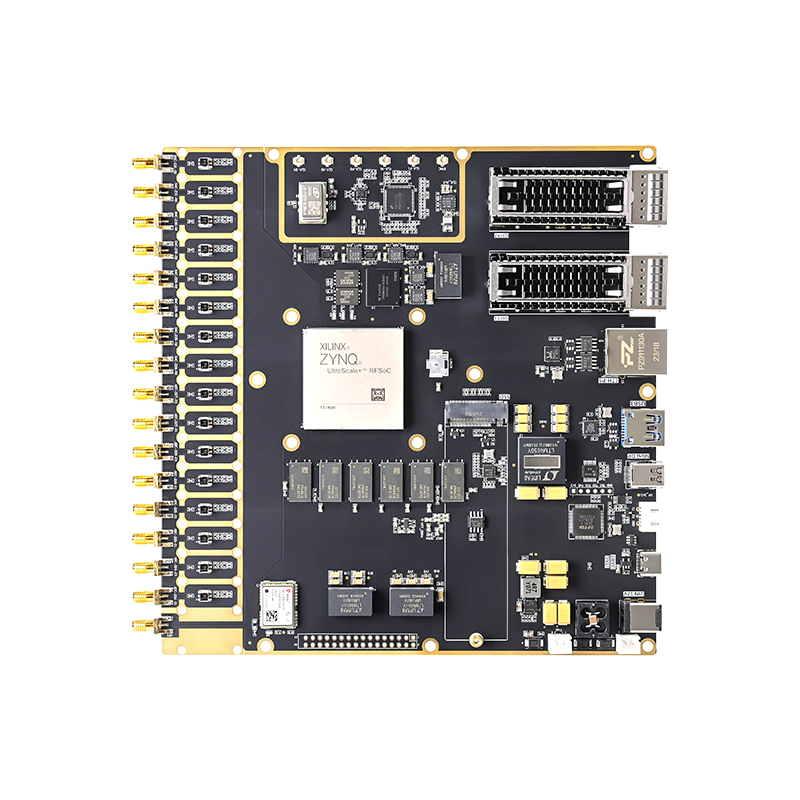

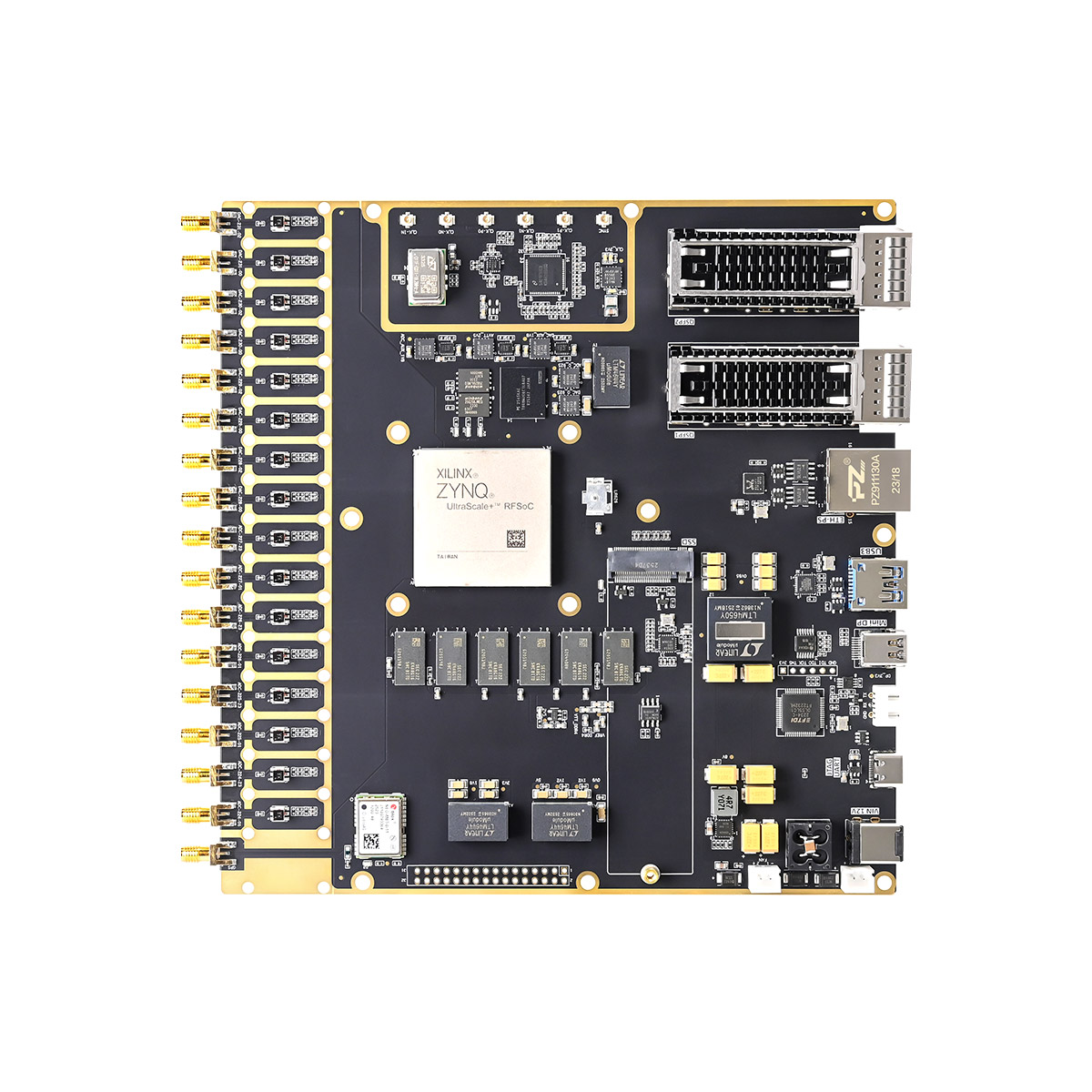

Interface Function Display

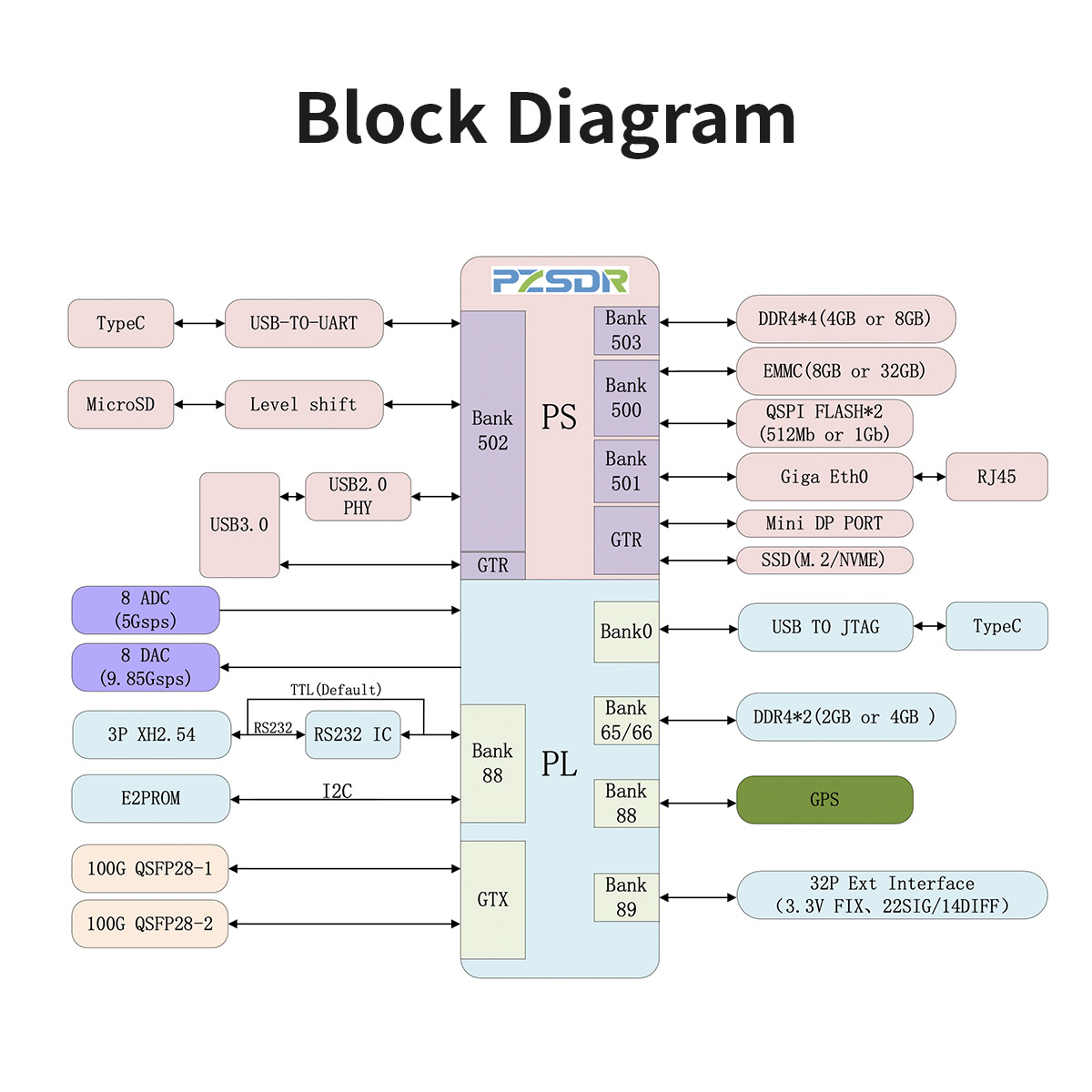

Product Parameters
PZSDR Main Parameters
SDR Module | P047Pro |
FPGA Chip | XCZU47DR-2FFVE1156I |
DDR4 | PS Side 8GB、PLSide 4GB |
QSPI FLASH | 1Gb |
EMMC | 32GB |
Processor Core | ARM : 4 x Cortex-A53 1.333Ghz RPU : 2 x Cortex-R5 533Mhz |
Speed Grade | 2 |
Temperature Grade | Industrial Grade(-40°C~+85°C) |
Logic Cells | 930k |
Look-Up Tables | 425k |
DSP Slices | 4272 |
Block RAM | 38Mb |
Boot Mode | JTAG/QSPI/SD/EMMC, selected via on-board DIP switch |
ADC Channels | 8 Channels/Sample Rate 5Gsps |
DAC Channels | 8 Channels/Sample Rate 9.85Gsps |
Number of Expansion IOs | HD: 20 (1.8/2.5/3.3V adjustable, default 3.3V) |
JTAG/UART | 1 / 1 |
TTL Serial Port/RS232 | 1 |
SD Card Interface | 1 |
PS-side SSD Interface | 1 |
Gigabit Ethernet | PS Side 1 Gigabit Ethernet |
Mini DP Output | 1 |
USB3.0 Host/Device Port | 1 |
SSD Storage | 1 |
QSFP28 Interface | 100G*2 |
Form Factors | 175mm x 180mm ( 6.89 inch x 7.09 inch ) |
Power Supply | 12V/3A |

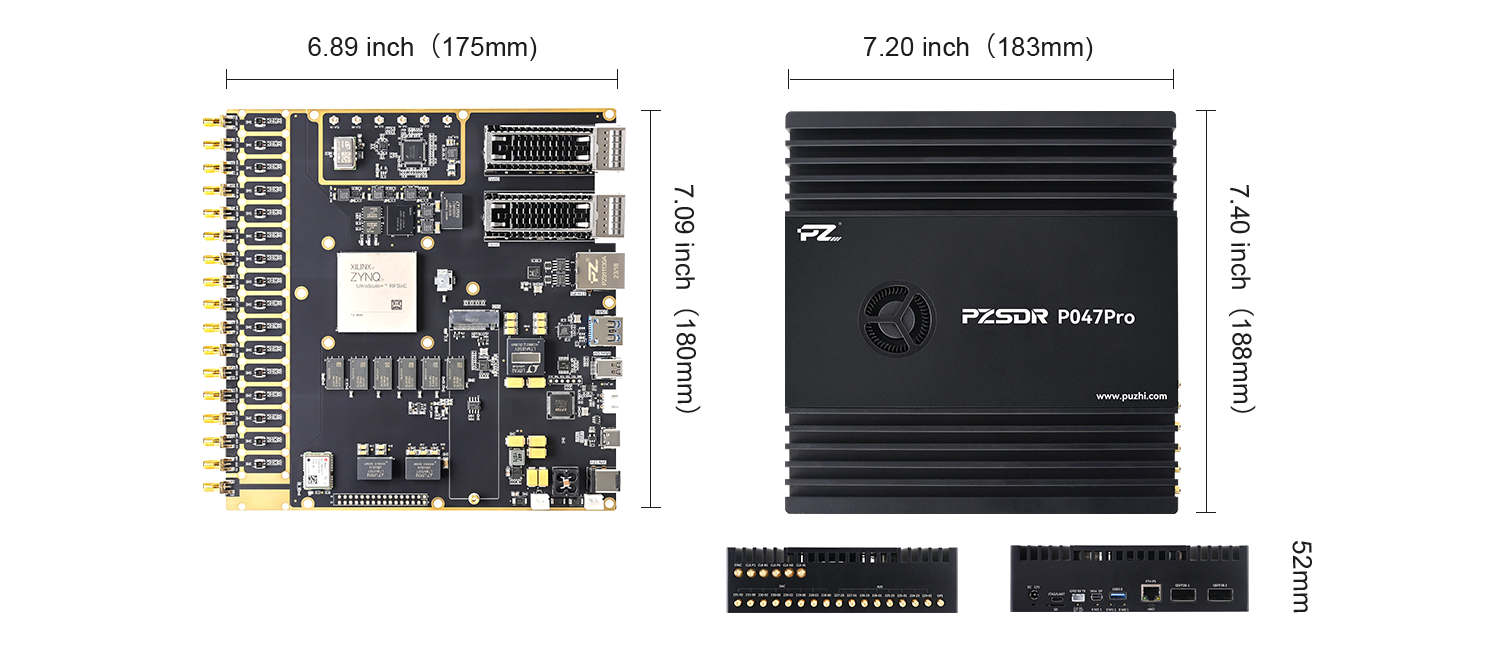

Product Dimensions
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
LED Flashing Demos
- 02.
LED PWM Control Demos
- 03.
FPGA On-Chip RAM R/W Demos
- 04.
FPGA On-Chip ROM R/W Demos
- 05.
FPGA On-Chip PLL Config Demos
- 06.
FPGA On-Chip FIFO R/W Demos
- 07.
FPGA-Side DDR4.R/W Test Demos
- 08.
I2C R/W E2PROM Demos
- 09.
Opt Fiber Intf Eye Diagram Test Demos
- 10.
Aurora 8B/10B Loopback Test Demos
- 01.
- 2
ARM Vitis Demos
- 01.
Introduction to Vitis
- 02.
UART Demos
- 03.
DDR R/W Demos
- 04.
PS-Side RTC Int Demos
- 05.
EMIO-Controlled LED Demos
- 06.
I2C Controller R/W EEPROM Demos
- 07.
RS232.Demos
- 08.
EMMC Demos
- 09.
SD Demos
- 10.
DP Demos
- 11.
SD Card BMP Image DP Display Demos
- 12.
Custom IP Core Demos
- 13.
lwip-Based Echo Server Demos
- 14.
UDP-Based Remote Update QSPI Flash Demos
- 15.
AXI DMA Loopback Test Demos
- 01.
- 3
PetaLinux Demos
- 01.
Install VM & Ubuntu System
- 02.
PetaLinux Tool Inst
- 03.
Customize Linux Sys with PetaLinux
- 04.
Add Startup Scripts & User Files
- 05.
SD Card Root FS
- 06.
EMMC Boot Startup
- 07.
GPIO-LED Op under Linux
- 08.
NVME SSD Op under Linux
- 09.
USB Op under Linux
- 10.
Ethernet Op under Linux
- 01.
- 4
RF Demos
- 01.
Clock LMK04828 Demos
- 02.
Bare-Metal RF Transceiver Demos
- 01.
- 5
PYNQ Demos
- 01.
Introduction to RFSOC BOOK
- 02.
PYNQ Img Burning & Env Config
- 03.
Notebook Example Execution
- 01.
Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
