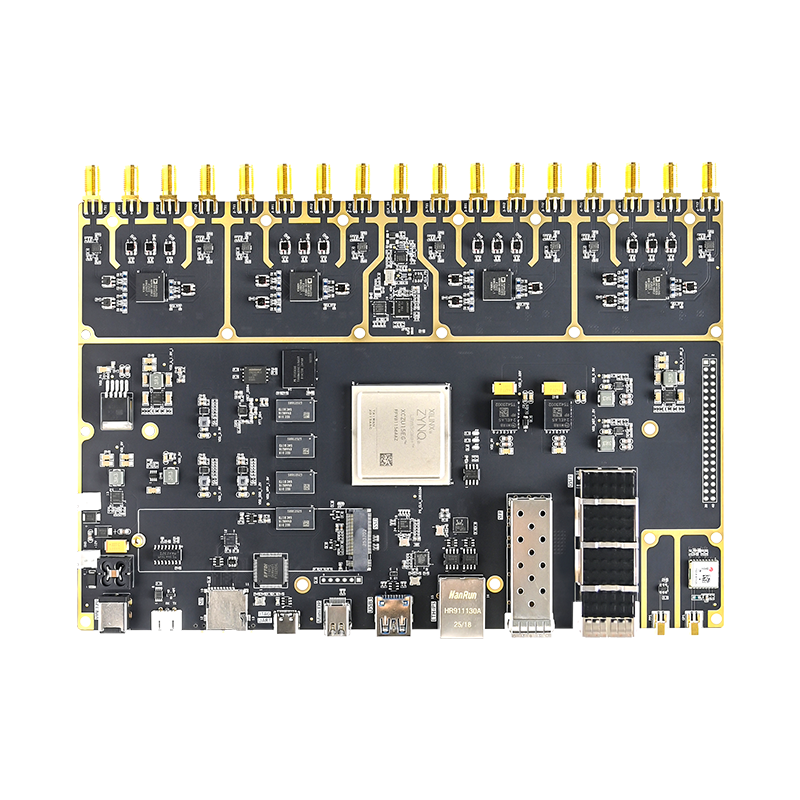

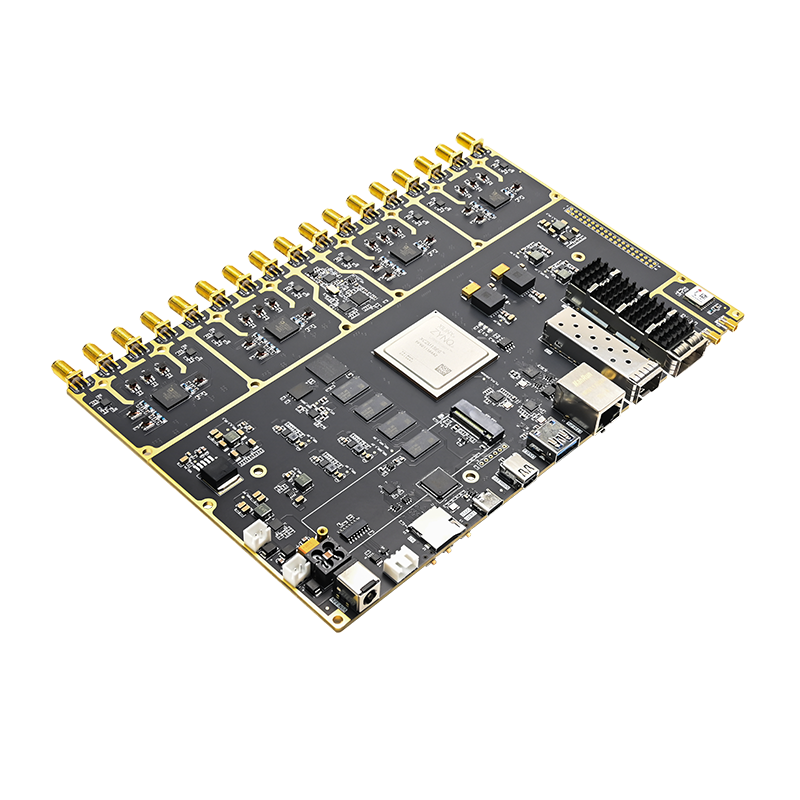

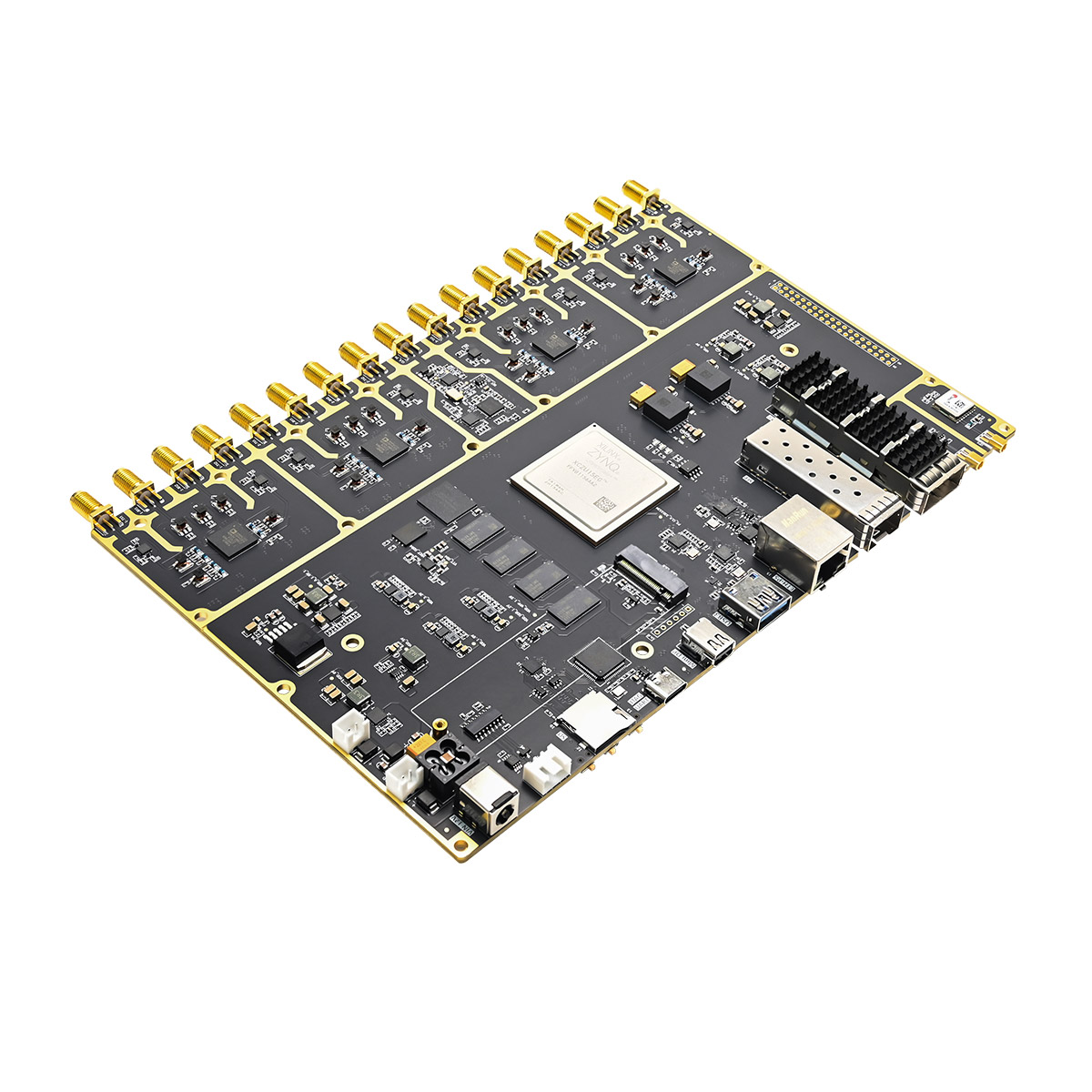

Puzhi PZSDR Software Defined Radio ZU15EG+AD9361*4
- RF chip AD9361，Frequency range 70M-6Ghz，Signal bandwidth 200K-56Mhz
- PS Side 4GB DDR4，512Mb QSPI FLASH，Power Amplifier 22dbm
- Dimensions：Board 235mmx152mm、Shell 245mmx160mmx28mm
- 8TX 8RX，High Isolation Excellent Performance，Static Protection Safe and Reliable
- Support open source software，Provide hardware reference & software rich routines，Customised Services

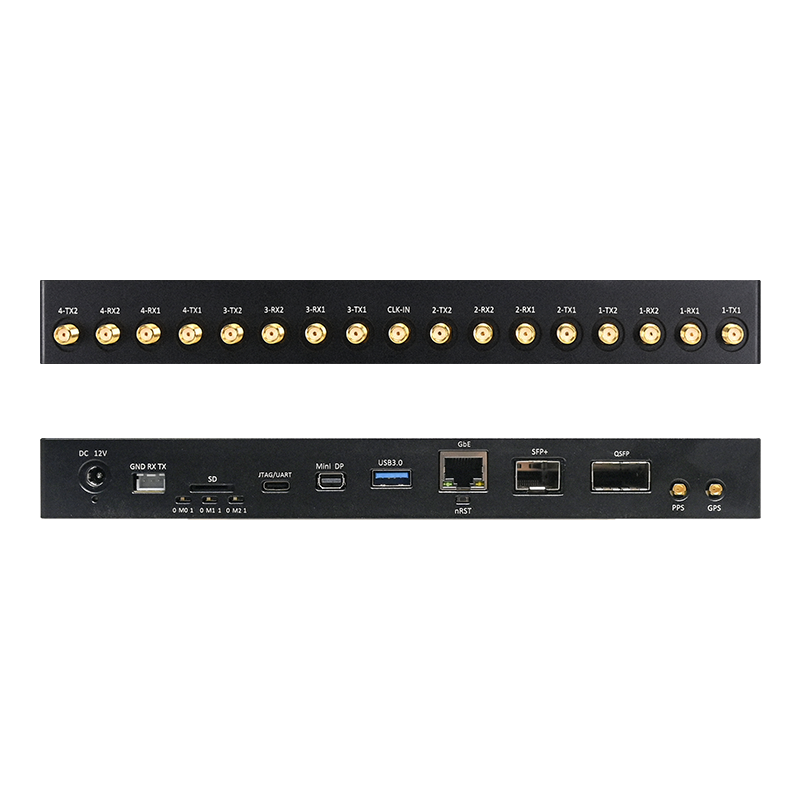

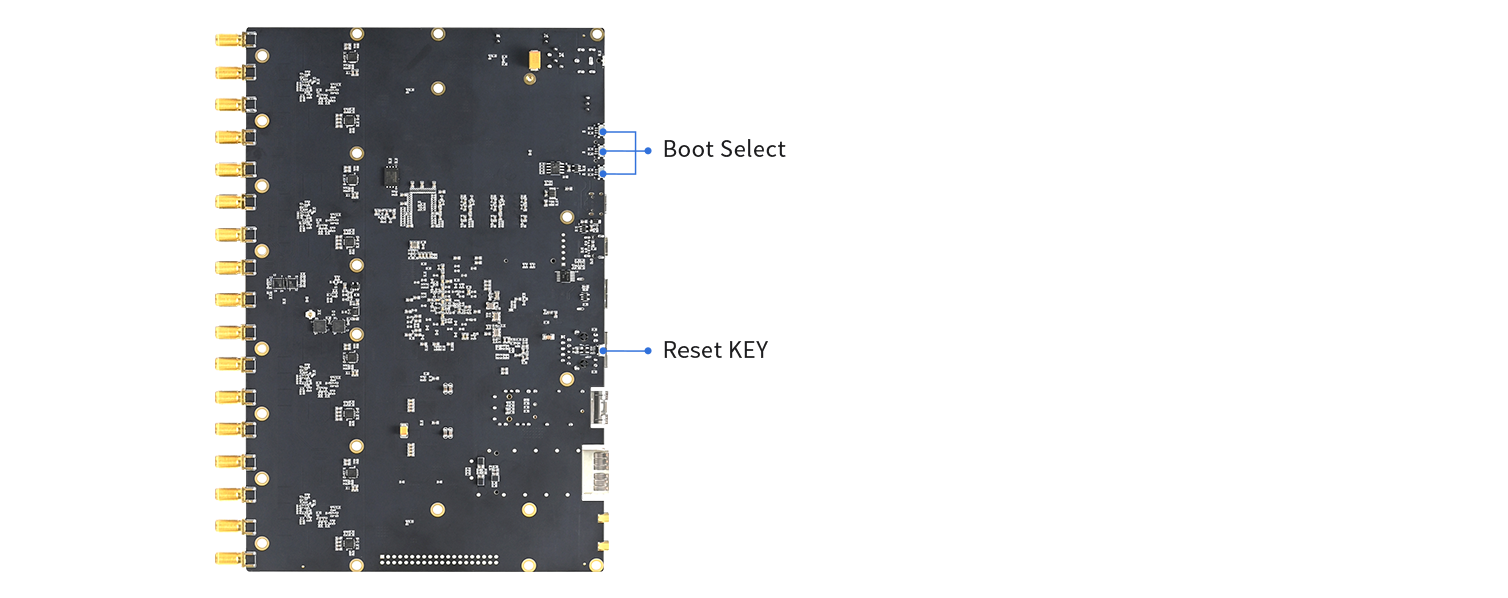

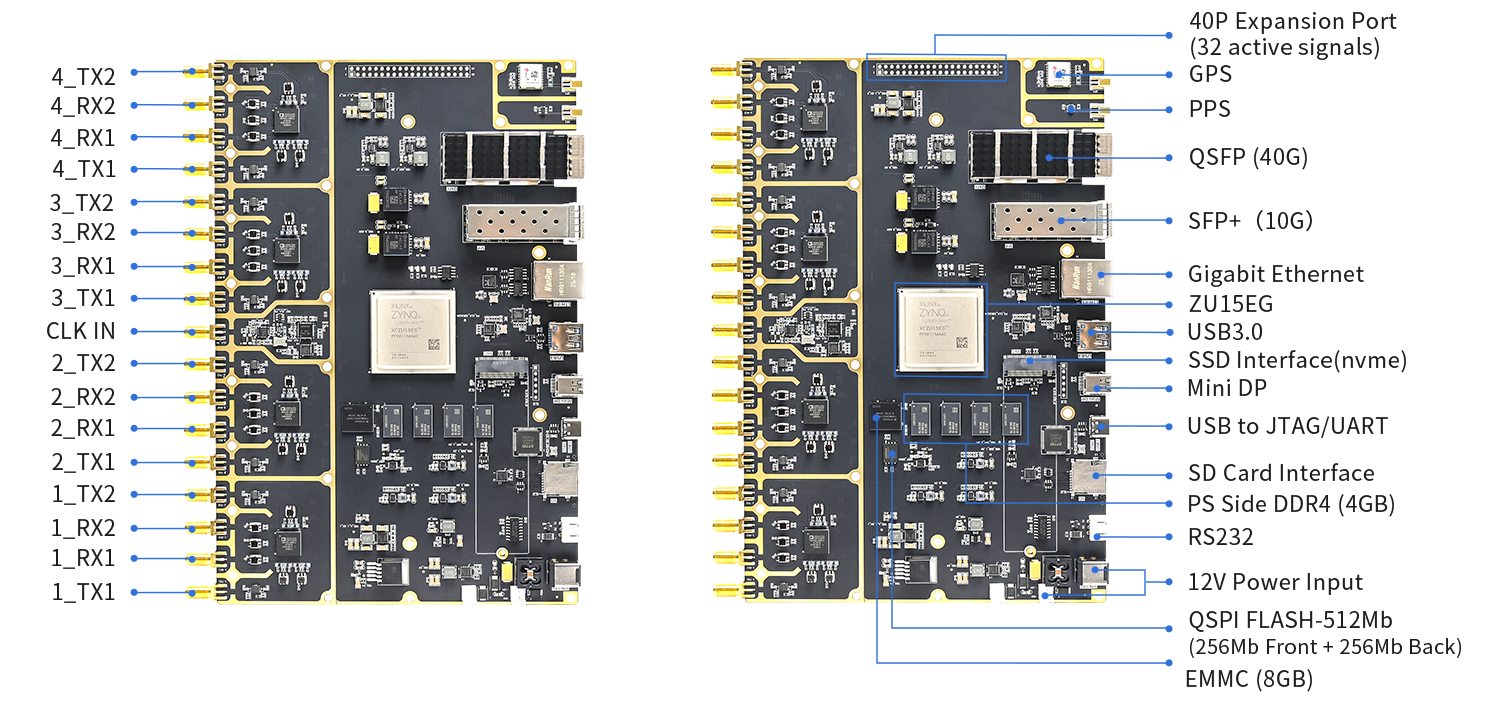

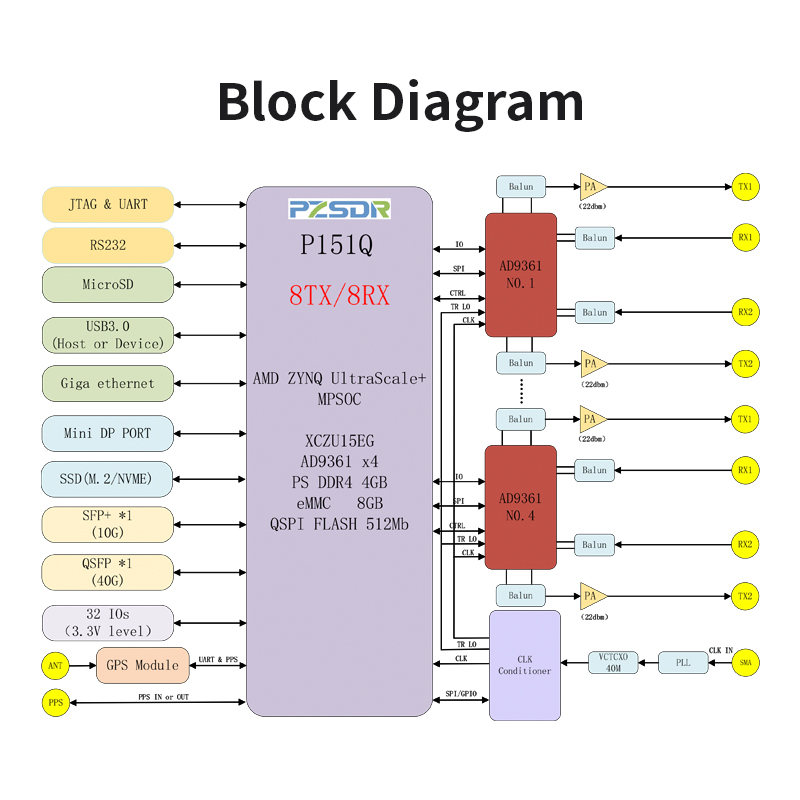

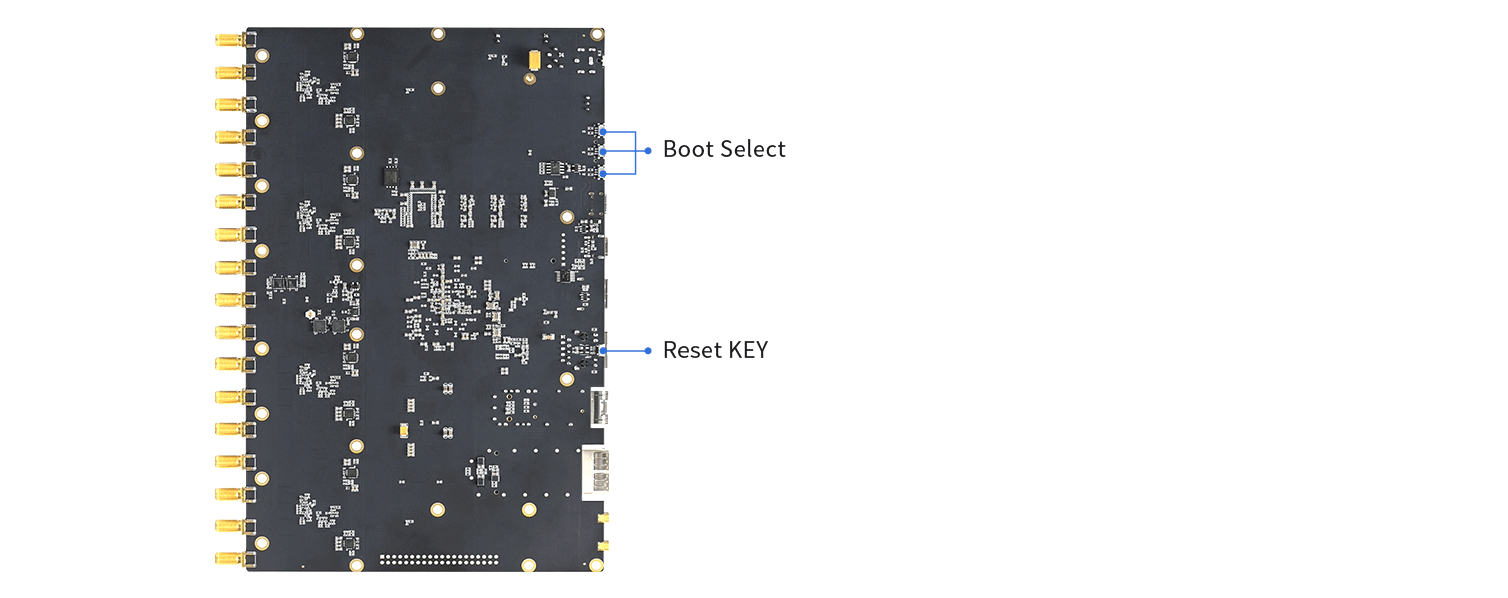

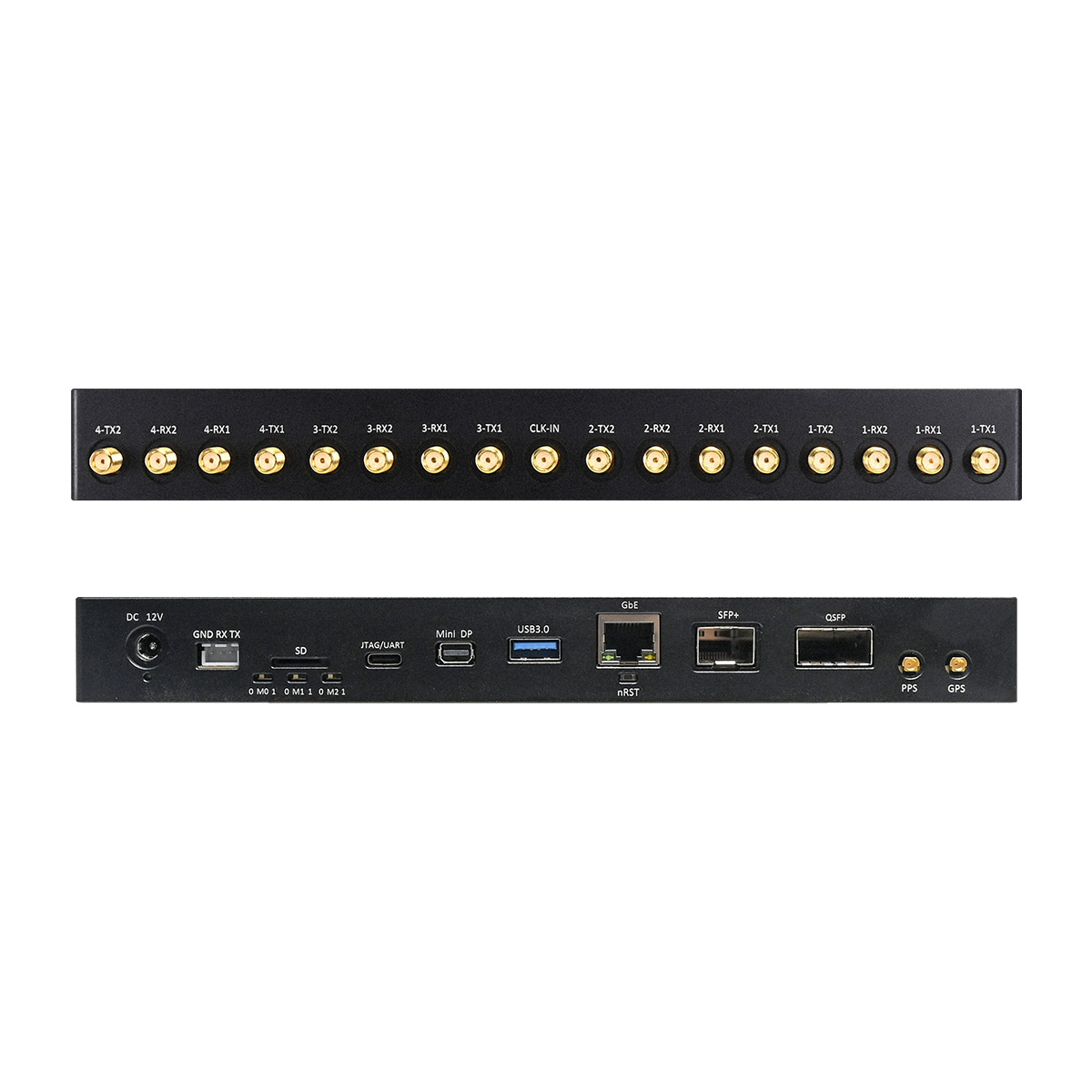

Interface Function Display

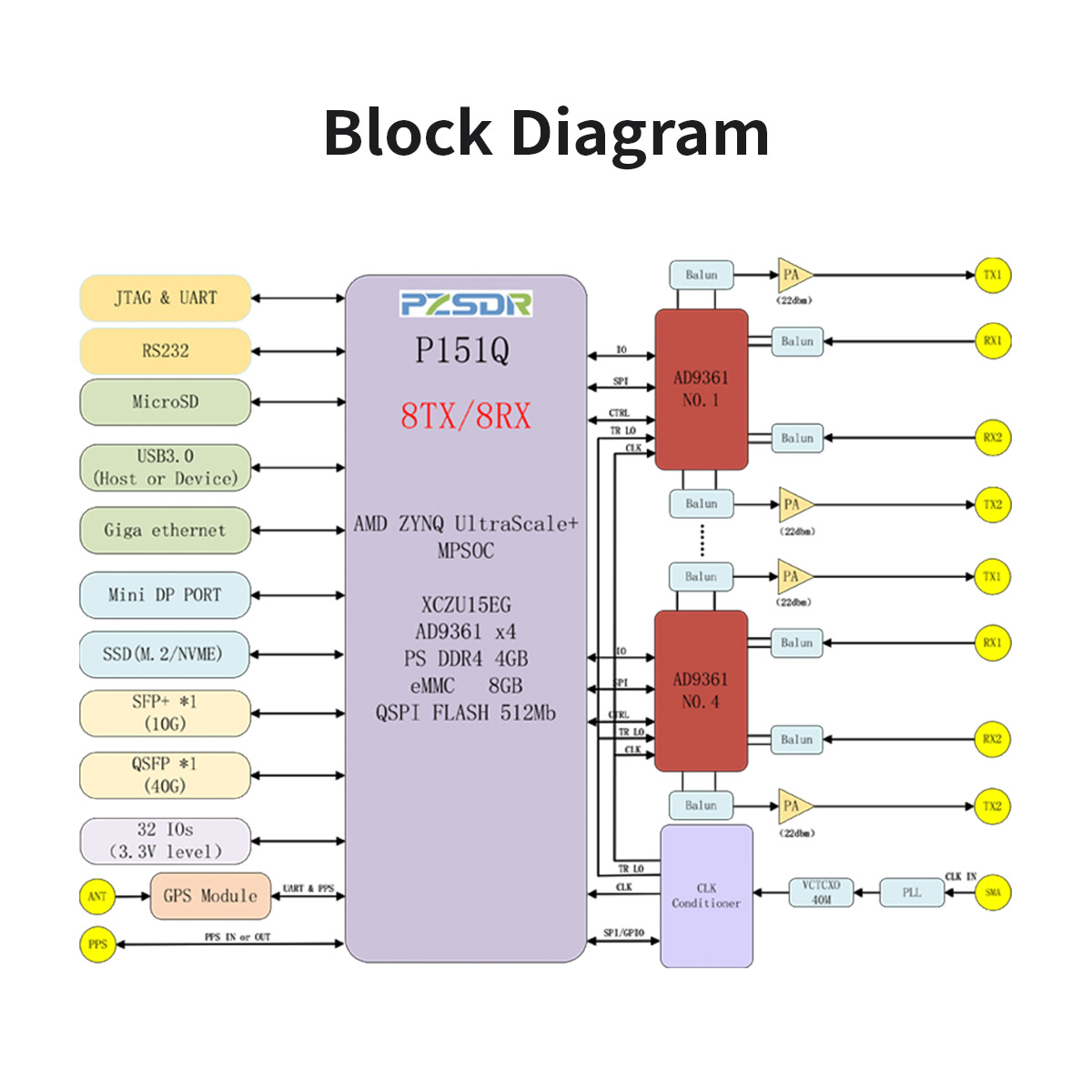

Product Parameters
PZSDR Main Parameters
SDR Module | P151Q |
FPGA Chip | XCZU15EG-2FFVB1156I |
Processor Core | 4 x Cortex-A53-1.333Ghz 2 x Cortex-R5F-533Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade(-40°C~+85°C) |
Logic Cells | 747K |
Lookup Tables | 341000 |
Flip-Flops | 682000 |
DSP Slices | 3528 |
BLOCK RAM | 26.2Mb |
RF Chip | AD9361BBCZ |
Frequency range | 70M-6Ghz |
Signal Bandwidths | 200K-56Mhz |
Power Amplifier | 22dbm |
DDR4 | PS Side 4GB |
QSPI FLASH | 512Mb (256Mb x 2) |
RF Clock | 40 MHz VCTCXO (0.1 ppm) / External Input |
Gigabit Ethernet | PS Side 1 Gigabit Ethernet |
USB3.0 | 1 |
UART | 1 |
JTAG | 1 |
SD Card Slot | 1 |
GPS | 1 |
PPS | 1 |
External Clock Input | 1 |
Expansion Port IOs | 40-pin 2.54mm pitch connector (including 5V/3.3V power supplies, 32 signal lines) |

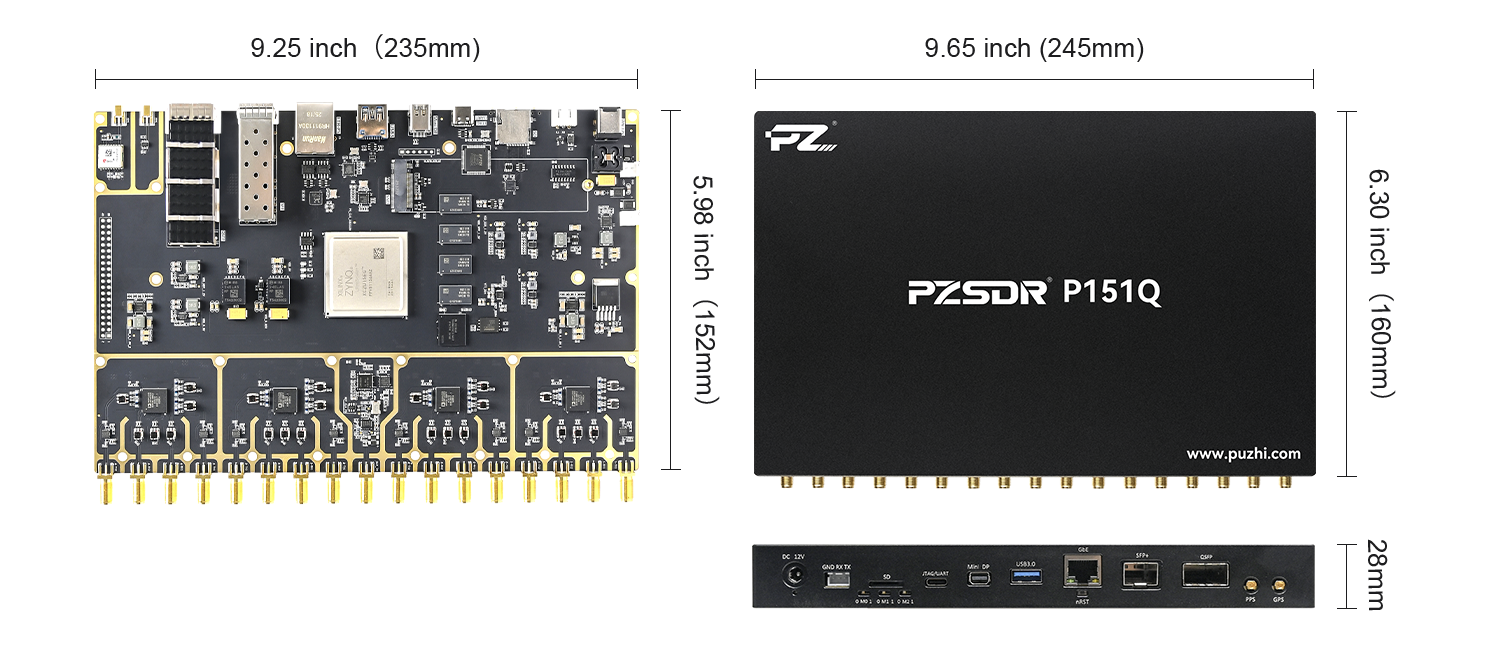

Form Factors | Board: 235mm x 152mm ( 9.25 inch x5.98 inch ) with Shell: 245mm x 160mm x 28mm |
Protection Class | All External Interfaces are Protected against Static Electricity, Clock/RF are Shielde |
Power Supply | 12V/3A |

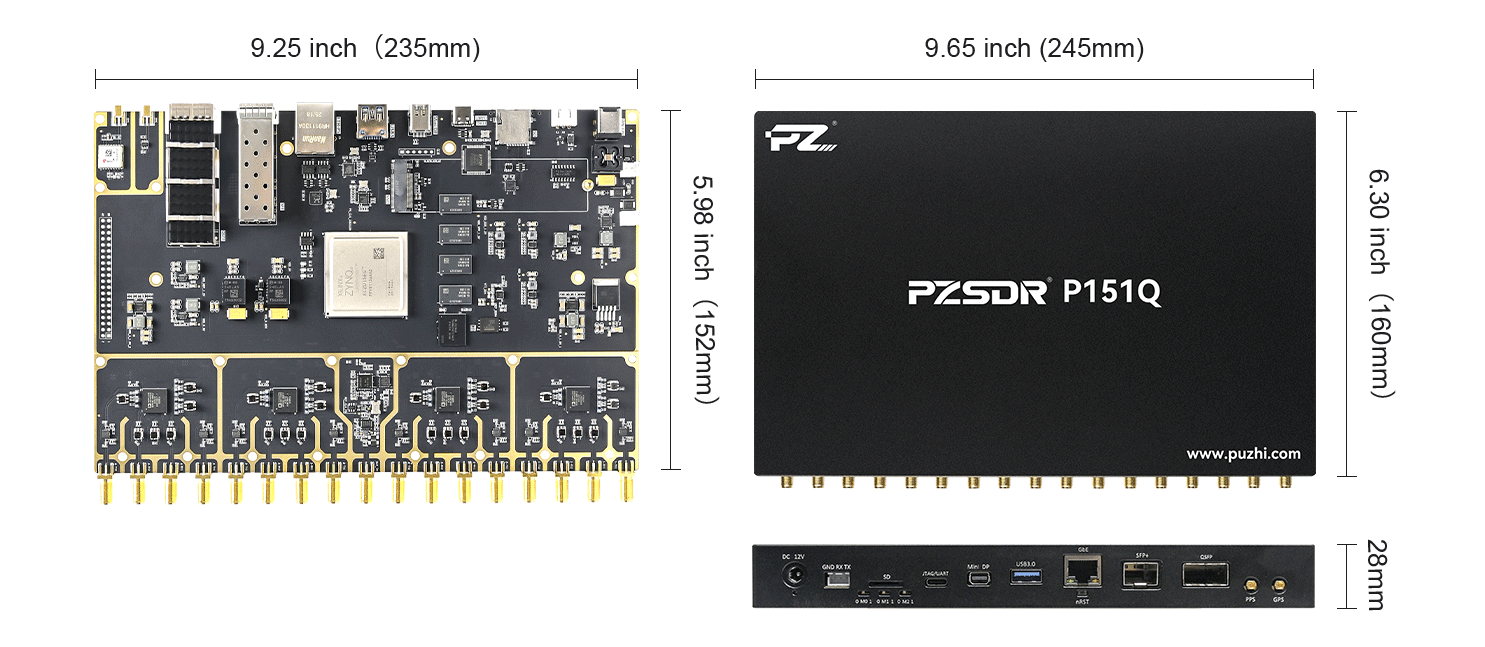

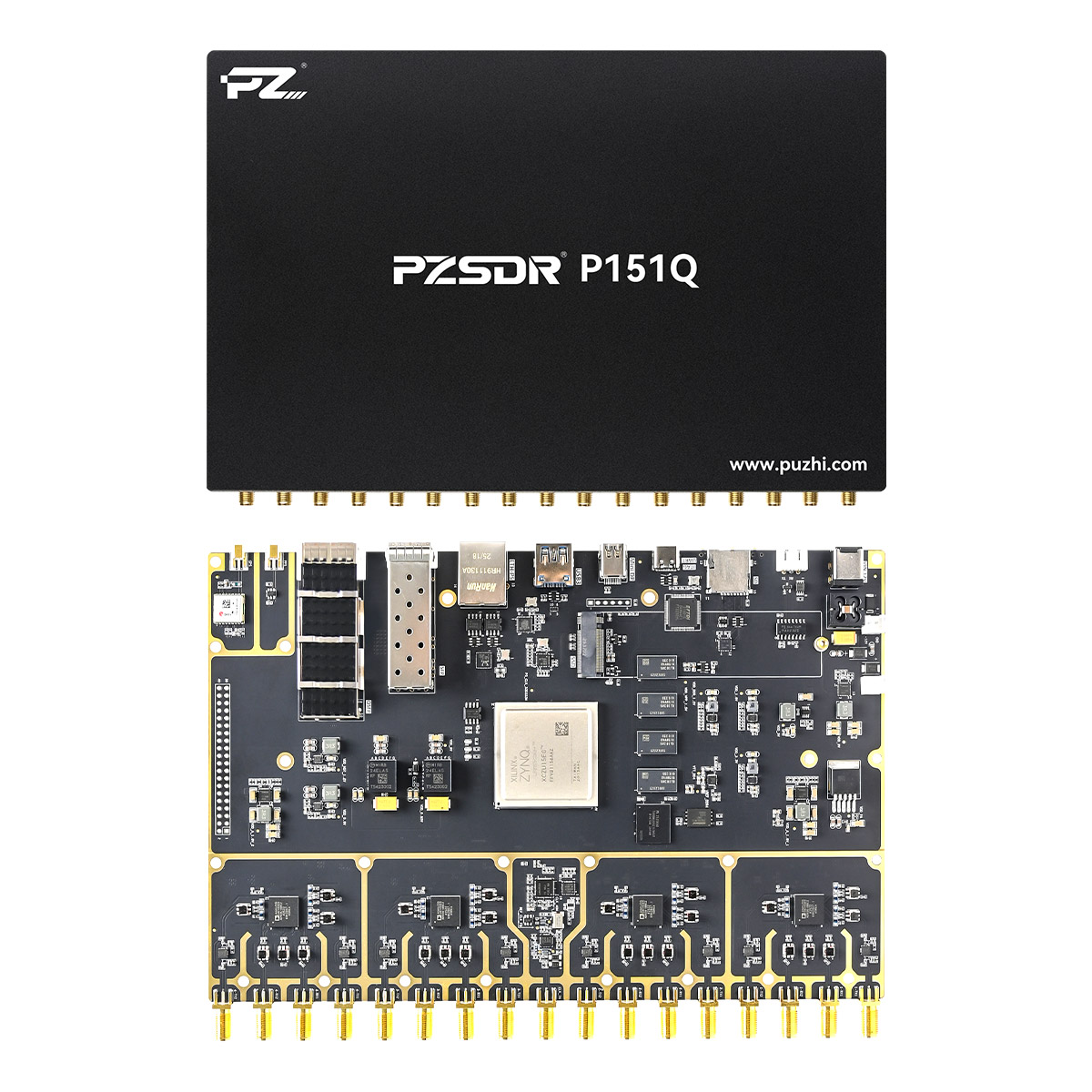

Product Dimensions
Rich Support Resources
Initial Code & Firmware | 1. ADI-NOOS Bare-Metal Test Code 2. ADI-FMCOMMS5 Partially Compatible Firmware 4. ADl-IIO-USB3.0 (NCM-3.75G)-EMMC Test Firmware |
Open-source Project Support | 1. ADI IIO-oscilloscope 2.Spectrometer Upper Computer Software |
Software Support | 1. libiio 2. ADI IIO-oscilloscope 3.Upper Computer Acquisition and Processing Software |

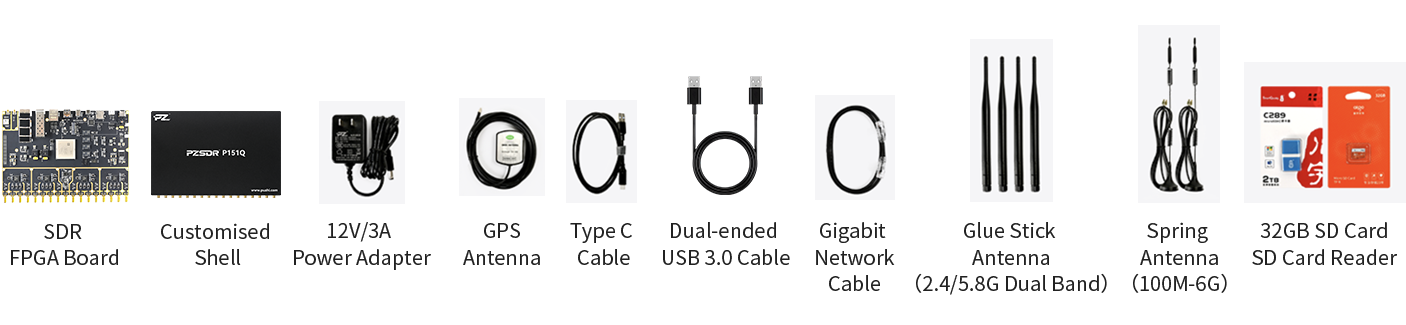

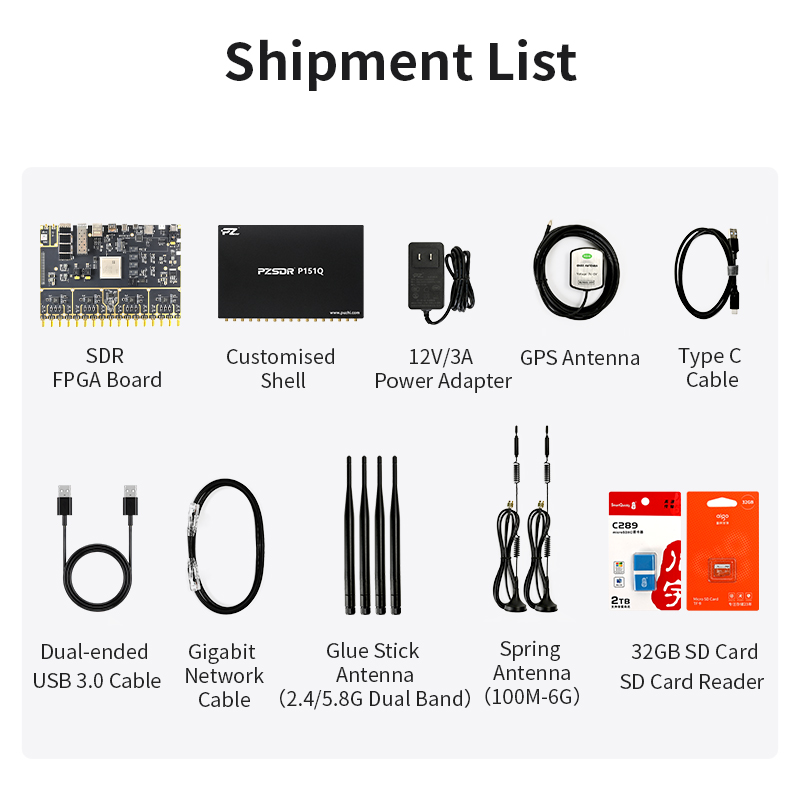

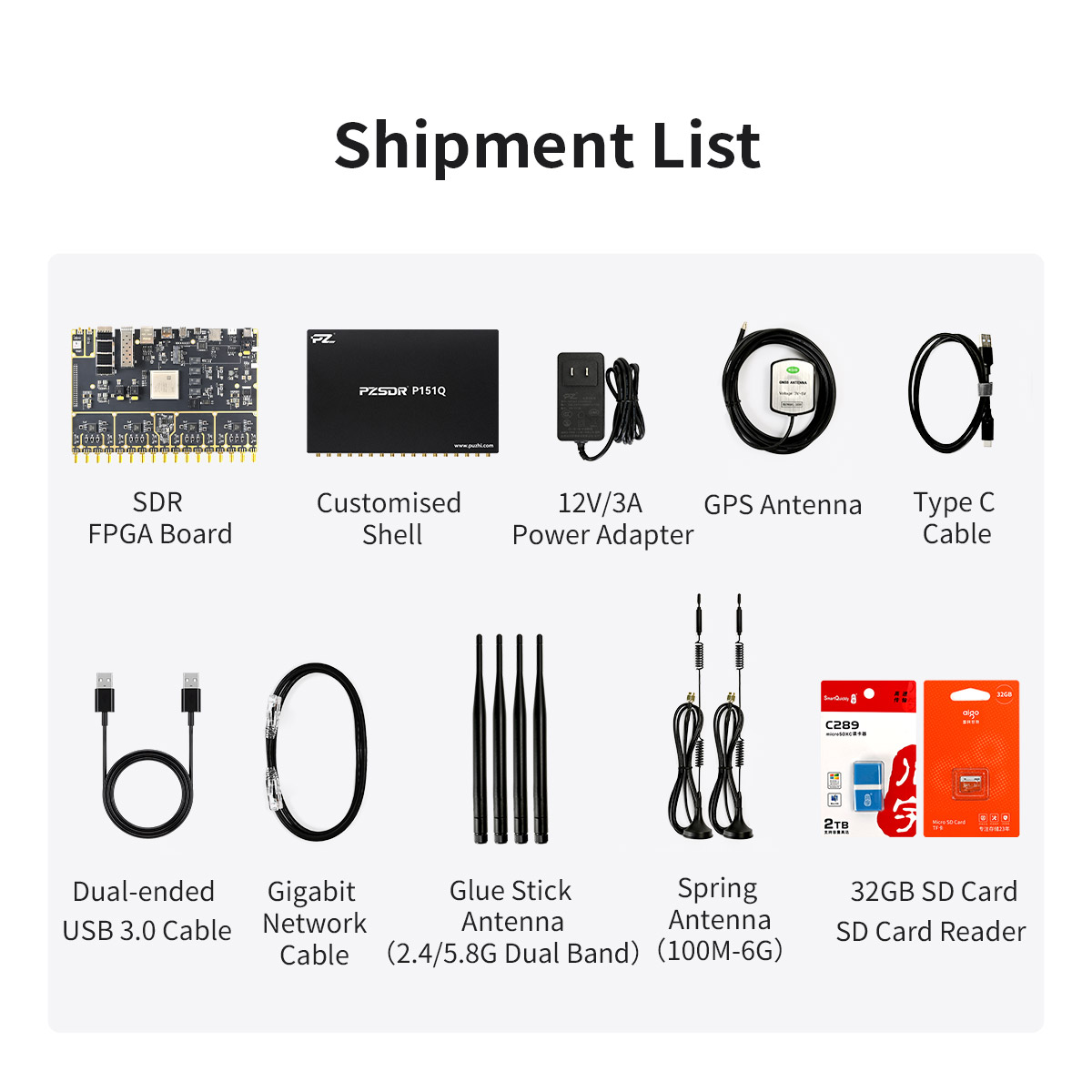

Standard Delivery List
